PULSE-IT: Lightweight and Expressive Synthesis of Wind Instrument Playing

Welcome to the accompanying website for the PULSE-IT late-breaking demo. This is an accompanying website to the following publication:

  1. Christian Dittmar, Johannes Zeitler, Stefan Balke, Simon Schwär, and Meinard Müller
    PULSE-IT: Lightweight and Expressive Synthesis of Wind Instrument Playing
    In Late-Breaking Demos of the International Society for Music Information Retrieval Conference (ISMIR), 2025. PDF
    @inproceedings{DittmarZBSM25_PulseIt_ISMIR-LBD,
author      = {Christian Dittmar and Johannes Zeitler and Stefan Balke and Simon Schw{\"a}r and Meinard M{\"u}ller},
title       = {PULSE-IT: Lightweight and Expressive Synthesis of Wind Instrument Playing},
booktitle   = {Late-Breaking Demos of the International Society for Music Information Retrieval Conference ({ISMIR})},
address     = {Daejeon, Republic of Korea},
year        = {2025},
url-pdf    = {https://audiolabs-erlangen.de/resources/MIR/2025_DittmarZBSM_WindInstrumentSynth_ISMIR-LBD/2025_DittmarZBSM_WindInstrumentSynth_ISMIR-LBD.pdf}
}

Abstract

Wind instruments enable highly expressive performances through playing techniques such as vibrato, slurs, and growl. In this demo, we introduce PULSE-IT, a lightweight synthesis method that combines simple signal processing components with data-driven control signals. Based on a pulsetable oscillator and time-variant filtering, PULSE-IT supports both re-synthesis and cross-synthesis (timbre transfer) of expressive wind instrument playing at low computational cost. Despite its simplicity, the method yields convincing results and provides a practical alternative to more complex neural approaches.

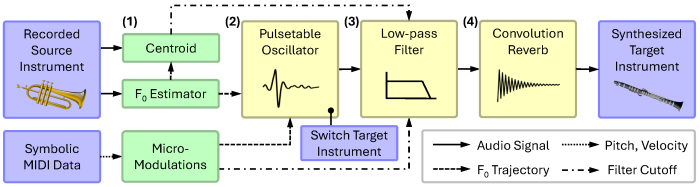

PULSE-IT System Overview

System Overview

Cross-Synthesis Listening Examples

In this example, we perform cross-synthesis with a short excerpt of a jazz trumpet solo recorded in the course of the Jazzomat Project. We extract the spectral centroid as described in eq. (1) [5]. For synthesis, we use pulsetables representing trumpet, clarinet, bassoon and tuba, adjusting the fundamental frequency octave to the target instrument range. For clarinet, bassoon and tuba, we apply smoothing to the control signals to simulate higher inertia.

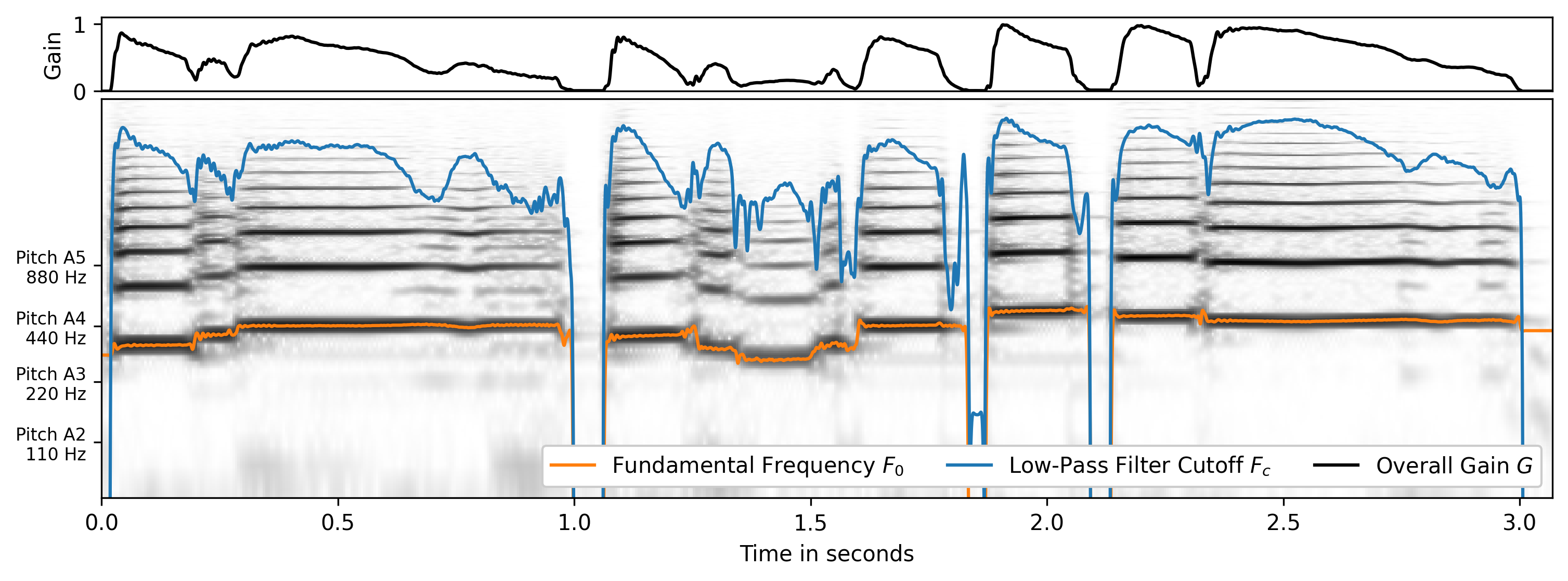

hfm_original_trumpet

Synthesis from Symbolic MIDI Data

In this example, we synthetically generate micro-modulations instead of extracting them from the original instrument recording. Besides the MIDI pitch, the symbolic data comprises note onsets, note durations, and velocity. Per convention, overlapping notes mark legato playing. This example does not strive at a completely realistic re-creation of the original trumpet solo, but shall illustrate how strongly the micro-modulations influence the plausibility of the synthesized phrases. Most of the variations are coming from a random number generator with fixed seed. In future work this could be done better by generative neural sequence models. For instruments like clarinet, bassoon and tuba, the attack phases have been extended to simulate higher inertia.

hfm_original_trumpet

Cross-Synthesis in ChoraleBricks

Cross-Synthesis in URMP

Cross-Synthesis in Bach10

Additional Remarks

Other Resources

Already in the mid 1970s, electronic wind instruments such as the Martinetta and Variophon were using principles of pulse forming synthesis [9] to emulate tones of real acoustic wind instruments. Despite being implemented with analog circuits, the sound comes relatively close to the actual instruments, thanks to micro-modulations captured with a wind controller.


Today, much more elaborate instrument models can be implemented in digital synthesizer software. The patches by Joel Blanco Berg achieve quite some realistic tones. Here, no neural audio models used, but rather a refined implementation of wavetables plus time-variant filter, similar to the technique by Horner and Beauchamp [5].

Acknowledgments

DFG Logo

This work was funded by the Deutsche Forschungsgemeinschaft (DFG, German Research Foundation) under Grant No. 500643750 (MU 2686/15-1) and under Grant No. 555525568 (MU 2686/18-1). The International Audio Laboratories Erlangen are a joint institution of the Friedrich-Alexander-Universität Erlangen-Nürnberg (FAU) and Fraunhofer Institute for Integrated Circuits IIS.
